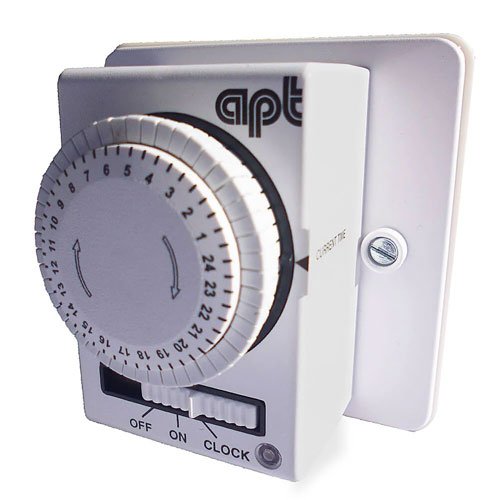

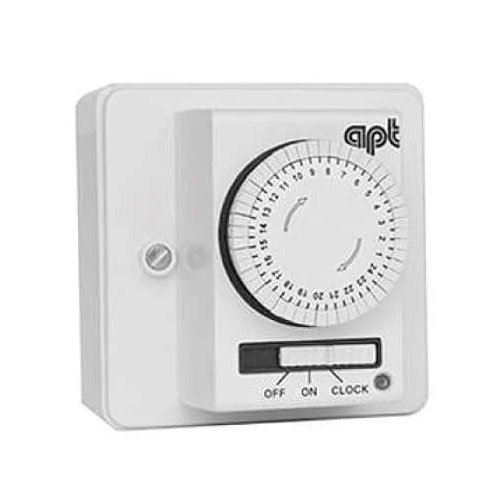

Shop Apt 24Hr Timer For Immersion from the huge range of Radiators & Central Heating products at Tadhg O'Connor ltd Co. Limerick. Nationwide next day delivery or free click & collect in-store.
€59.99 incl. VAT
| Live Stock | |
|---|---|
| Rathkeale | 0 |
| NCW Hardware | 18 |
| Furniture and Electrical | 0 |
| Adare | 0 |
| Need More? - No Problem! | |
QtyAdd to Cart

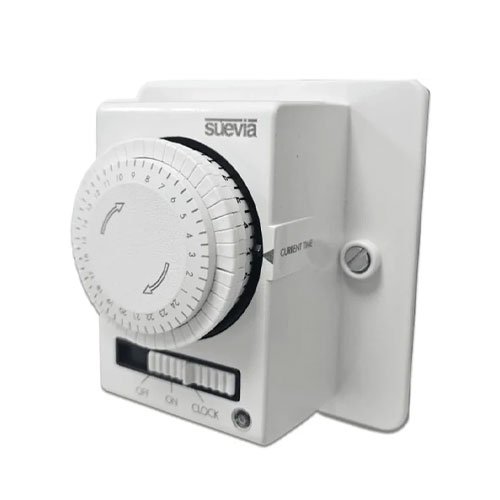

Suevia IMM24F 24-Hour Flush Mounted Immersion Heater Time Switch
Take control of your immersion heater with the Suevia IMM24F 24-Hour Flush Mounted Time Switch. Designed for both domestic and commercial installations, this reliable electro-mechanical timer allows you to programme your immersion heater to operate only when needed, helping to reduce energy consumption and lower running costs.
Featuring a simple rotary dial with 30-minute switching intervals, the IMM24F makes scheduling straightforward. Select from permanent ON, OFF, or automatic timed operation to suit your daily routine. A built-in neon indicator clearly shows when the heater is powered, while the durable flush-mounted design provides a neat, professional finish.
Rated at 16A (3.5kW), the Suevia IMM24F is suitable for immersion heaters and other high-current electrical loads, making it a dependable choice for homes, hotels, workshops, offices, and commercial premises.
Key Features
- 24-hour electro-mechanical immersion heater timer
- 48 programmable segments with 30-minute switching intervals
- Simple rotary dial for easy programming
- ON / CLOCK / OFF operating modes
- Neon power indicator for clear status indication
- Flush-mounted design with back box included
- Impact-resistant housing for long-lasting durability
- Suitable for loads up to 16A (3.5kW)
- BEAB approved for safety and quality
- Ideal for domestic, commercial and industrial applications
Specifications
- Brand: Suevia
- Model: IMM24F
- Voltage: 230V AC
- Current Rating: 16A
- Maximum Load: 3.5kW
- Timer Type: 24-Hour Electro-Mechanical
- Switching Interval: 30 Minutes
- Program Segments: 48
- Mounting: Flush Mount
Dimensions
85 × 85 × 83mm
What's Included
- Suevia IMM24F Time Switch
- Flush mounting back box
- Installation instructions
Frequently Asked Questions
Is the Suevia IMM24F suitable for immersion heaters?
Yes. It is specifically designed for controlling immersion heaters and other electrical loads up to 16A (3.5kW).
Can I leave the immersion heater permanently on?
Yes. The rotary selector includes a Permanent ON setting, as well as OFF and Automatic Timer modes.
What is the shortest switching period?
The timer operates in 30-minute intervals, allowing up to 48 on/off switching periods across a 24-hour cycle.
Does this timer require batteries?
No. The Suevia IMM24F is an electro-mechanical timer powered directly from the mains supply and does not require batteries.
Can it be installed in a standard wall box?
The unit is designed as a flush-mounted timer and is supplied with a back box for installation. Always ensure the mounting depth is suitable before installation.
Does the timer have a power indicator?
Yes. A built-in neon indicator illuminates whenever the output is switched on.
Can this timer help reduce electricity bills?
Yes. By programming your immersion heater to operate only when hot water is needed or during off-peak electricity tariffs, the timer can help improve energy efficiency and reduce unnecessary electricity usage.
Is it suitable for commercial use?
Yes. The 16A rating and durable construction make it suitable for residential, commercial and light industrial applications.
Can I use it with appliances other than immersion heaters?
Yes, provided the connected load does not exceed 16A (3.5kW) and the appliance is compatible with a switched mains supply.
Does it come with installation instructions?
Yes. Installation instructions are included. For safety, installation should be carried out by a competent person in accordance with local electrical regulations.
